Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen

Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen
Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen

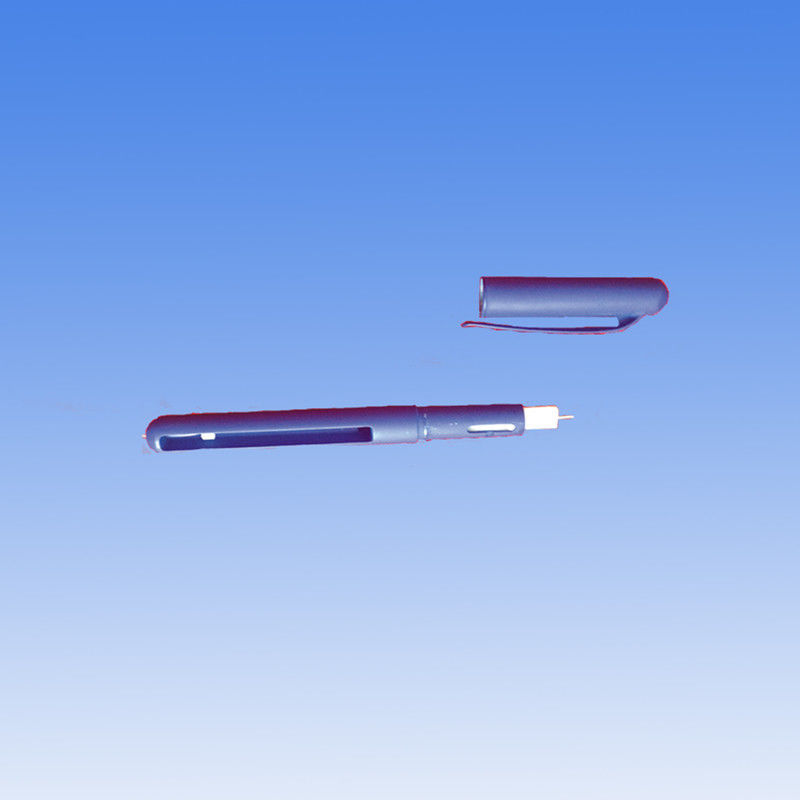

Large Image :  Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen

Product Details:
Place of Origin: Shanghai, China
Brand Name: Umitai
Certification: CE and ISO13485
Model Number: Tip-Therm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000PCS per month
Detailed Product Description
Size: 123mm×16.7mm×12.4mm,error Is ±10%. Weight: 10g, Error Is±10%
MOQ: 1000PCS Leadtime: 30 Days
Material: PVC
High Light:

monofilament pen

,

diabetic foot testing monofilament





Description:



Neuro- testing pen can be used forassessing precise the sensation of peripheral neuropathy parts of diabetic patient, so that the doctor according to the assess results, to implement effective treatment for patients with diabetic and the patient of peripheral neuropathy.

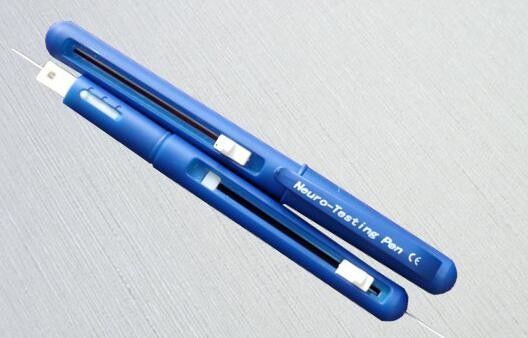

Medical Diabetes Testing Equipment Diabetic Foot Testing Monofilament Pen 0



Components:

1. Barrel, cap, pocket clip

  1. include: buttons, monofilament, slot;
  2. The part of testing sharpness sensation of Neuro- Testing Pen include: pin, neurotip pressure gauge, 40g marker



Basic parameter:

size: 123mm×16.7mm×12.4mm, error is ±10%.

Weight: 10g, error is±10%.



The instruction of Neuro- Testing Pen:

1. Monofilament Test (Test of touch sensation)

2. Fully extend the monofilament slowly by sliding the button to the end of Neuro- Testing Pen until it is firmed in the end of slot.

3. Prepare the patient for test, hold the monofilament in position for 1-2 seconds before removing, and the monofilament is calibrated to bend at 10g of force. Then observe and ask the patient feeling situation, If there is no touch sensation, it is verified the patient loss of sensation in this position.

4. Monofilaments lose will lose their accuracy if used regularly after 100uses. The workers should be replace the monofilament or Neuro- Testing Pen, they can also contact directly manufacturer or distributor.

5. Neurotip test (Assessing sharpness sensation)

6. Take off the cap, make use alcohol wipe to clean the neurotip.

7. Put the sterile neurotip on neuropathic parts of patients, press the neurotip until the button of press gauge arrive 40g marker, then ask the patient whether if they have sharpness pain, if they dont have any sensation, it is verified they have loss sensation serious in this part.



The maintenance of Diabetic Foot Test Monofilament

1. Before and after using Neuro- Testing Pen, they should clean monofilament and neurotip with alcohol wipe or antiseptic solution.

2. After clean Neuro- Testing Pen, adjust monofilament back to the original location to slip to the top of the slot , and cap on neurotip.





Applications:

Used for below people and cases:

Diabetics

Clinics

Hospitals



Competitive Advantage:

Umitai medical is a leading self-injection device manufacturer in China with rich experience many years. Our main products are: insulin pen, insulin pump, etc.

Umitai has very rich experience in the Self injection field and our insulin pen is the most famous domestic brand in China.

We have powerful professional R&D, QC teams to enable us to serve for our world wide customers with high quality & competitive products and also best OEM/ODM service.

We have been keeping close cooperation with many world famous hospitals, medical agencies and medical device dealers.

Umitai never stop innovating and making progress.

As an experienced manufacturer and exporter in medical field, Umitai is confident to satisfy our worldwide customers.

Welcome to contact us, we look forward to working together with you to achieve greater success.
