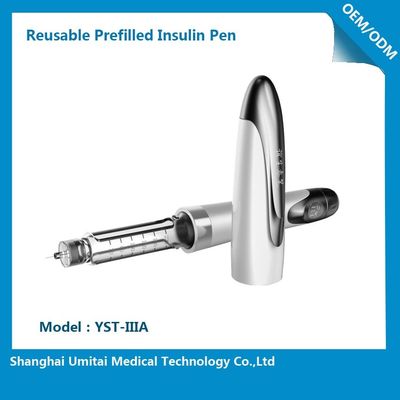

Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System

Certification
Good quality Insulin Injection Pen for sales
Good quality Insulin Injection Pen for sales
I'm Online Chat Now

Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System

China Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System supplier
Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System supplier Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System supplier

Large Image :  Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System

Product Details:

Place of Origin: Shanghai, China
Brand Name: Umitai
Certification: CFDA
Model Number: YST-IIIA

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Independent packing
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10,000PCS per week
Contact Now
Detailed Product Description
Color: Silver Dosage Type: Variable
Primary Container: Up To 3.0mL Cartridge Dosage Range: 0.01ml-0.6ml
Injecting Variable: 0.01ml The Material: Plastic
Infusion Errors: ±5% Injection Force: ≤25N

Reusable Prefilled Insulin Pen With Precision Mechanism Spiral Injection System



Description:

Umitai® Reusable Prefilled Insulin Pen used for 3 ml cartridges applied injections.

It is a medication delivery apparatus including a housing, a container of medication mounted to the housing,an outlet such as an injection needle, and a drive assembly adapted to force medication from the container, and through the outlet upon movement of an actuator.

The housing periphery includes a projecting abutment for digit engagement which is designed for abutting contact by a first digit of a hand of a user when the housing is grasped within the user's hand such that a second digit with the abutment permits application of an axial force by the first digit on the abutment in a direction generally opposite to an axial force applied to move the actuator.



Ø Dosage adjustable, a maximum of 0.6ml with number dosing from 1 to 60.

Ø Clear dose display scale for easy identification of dosage.

Ø The dose scale automatically returns to zero after injection.

Ø Cartridge replaceable, remove cartridge frame to load new cartridge easily.

Ø Designed according to the ergonomic theories with elegant appearance.

  • Intuitive and proven dial and dose handling concept for maximum patient acceptance.
  • Easy dose setting and correction ensuring high patient comfort.
  • Bayonet connection and sliding lead screw for quick cartridge change.
  • For insulin and other multidose therapies.
  • Large dose display for good readability even for visually impaired patients.
  • Robust design to minimize complaint rates and allow a pen lifetime of 3 years
  • Dose setting mechanism permits dose corrections without loss of insulin, provides doses in 1 unit increments up to 60 units per injection.
  • Using quality metal material for pen body makes durable product quality life. It is one of most reliable insulin pen in the world.

Reusable Insulin Pen Injection With Precision Mechanism Spiral Injection System

Umitai® – intuitive reusable pen

Simply dial and doseReusable Insulin Pen Injection With Precision Mechanism Spiral Injection System

Specifications:

Color silver
Weight 43g (Without cartridge & needle)
Size 170*18.5mm
Primary container Standard 3 ml cartridges according to ISO 11608-3*
Fill volume 3 ml
Min. dose / dose increment 0.01 ml
Max. dose 0.6ml
Injecting Variable 0.01ml
Number of dose increments 60
Compatible needle types Compatible with standard and safety pen needles
Use type Reusable



Applications:

Umitai® Metal Insulin pen widely be used as below:

  • Diabetes patients self management
  • The hospital clinical
  • Retail Pharmacies
  • Biopharmaceutical company
  • Clinics
  • Retail Chain Stores
  • Retail Pharmacy

Compatible: 3ml cartridges injection, Injection contains:

  • growth hormone
  • interferon
  • insulin
  • And other 3ml cartridges injection



Competitive Advantage:

  • Umitai has extensive experience in injection device development and manufacturing of more than 5years and has numerous devices on the market.
  • Easy to use, simply twist the dose, insert the needle and push button.
  • Highly accurate dosage, 1 unit increment with a mechanical system.
  • High quality metal construction makes it reliable life.
  • Insulin cartridge and disposable needles compatibility with market popular manufacturer
