|Dosage Adjustable:||YES||Cartridge Storage Volume:||3ml|
|Mini Dosage:||0.01ml||Max Dosage:||0.6ml|
|Injecting Variable:||0.01ml||Use Method:||Reusable|
|The Material:||High Quality Look & Feel Including Metal Outer Housing||Operational:||Easy Dose Setting And Correction Ensuring High Patient Comfort|

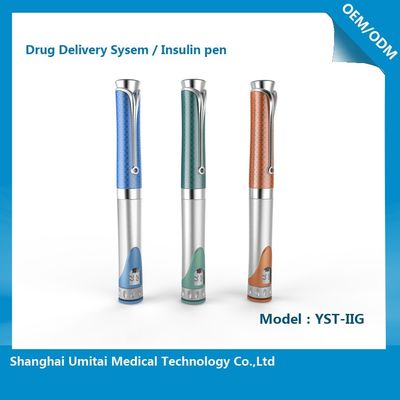

Innovative Drug Delivery Sysem Injectior Pen for Child,senior & special populations
Simple, Consistent, Accurate Injections
Driven by special high performance precision mechanism spiral injection system, It has an easy touch button, requires a light touch to deliver the insulin at all insulin dose.
Dose setting mechanism permits dose corrections without loss of insulin, provides doses in 1 unit increments up to 60 units per injection.
Quicker, easier injections
It is a prefilled insulin delivery device, Push button and 1 click confirming that you have delivered full dose you set.
The dose scale automatically returns to zero after injection to allow visual confirmation of dose delivery.
Offers reliable insulin delivery experience for users.
Using quality metal material for pen body and inner parts makes durable product quality life. It is one of most reliable and cost down insulin pen in the world.
The technical requirements of Drug Delivery Sysem Injectior Pen compliance with ISO11608-1.After experiencing the following experiment ,the accuracy of the product compliance with the requirements of the product.
Ø Injector pen three times by free-fall from a height of 1 000 mm onto the test surface.
Ø Injector pen are placed in a test chamber for at least 96 h in the dry heat 70 ℃ ± 2 ℃ temperatures.
Ø Injector pen are placed in a test chamber for at least 96 h in the cold storage 40 ℃ ±3℃ temperatures.
Ø Injector pen are placed in a test chamber for cyclical testing six cycles in the upper temperature of (55 ± 2) ℃, lower temperature of (5 ± 3) ℃ .
Ø Continuous injection 5460 times.
Ø Injector pen are placed in a test chamber for accelerated aging 5 months in the temperature 60 ℃ ± 2 ℃ ,humidity 55±25%RH .
Design and customization:
The Umitai® Insulin pen can be customized with different colours for the pen cap and housing and with customer specific printing.
|Color||Blue and white porcelain|
|Weight||45g (Without cartridge & needle)|
|Primary container||Standard 3 ml cartridges according to ISO 11608-3*|
|Fill volume||3 ml|
|Min. dose / dose increment||0.01 ml|
|Number of dose increments||60|
|Compatible needle types||Compatible with standard and safety pen needles|
Umitai® Metal Insulin pen widely be used as below:
Compatible: 3ml cartridges injection, Injection contains:
